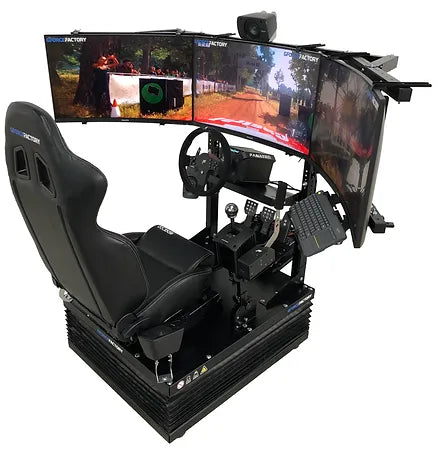

Edge 6D is a 6DOF motion simulator designed to be compact enough to be suitable for use in a range of environments, whether that be home, business or leisure, and versatile enough to be used for a variety of motion simulation activities.

Product Guides and Manuals

Edge 6D Motion Simulator Manual

Gforcefactory dashboard explained Guide

Gforcefactory EDGE 6D Network Interface Specification Guide

Gforcefactory EDGE 6D supported seats monitors controls Guide

Gforcefactory EDGE 6D system dimensions and workspace Guide

Gforcefactory Firmware update procedure Guide

Gforcefactory Technical data sheet EDGE 6D Guide

Shipping Details

Return Policy

View full details

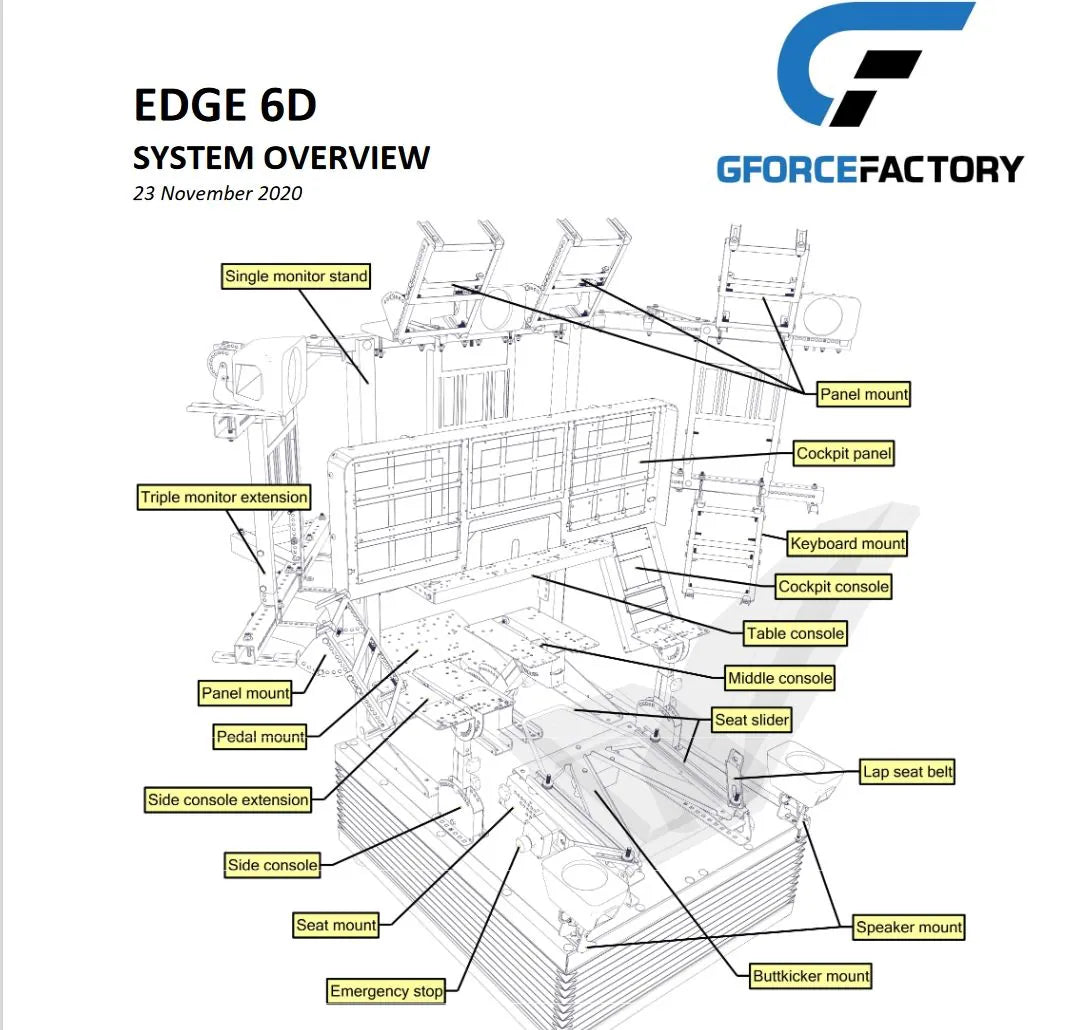

What is included with the 6D MOTION SIMULATOR

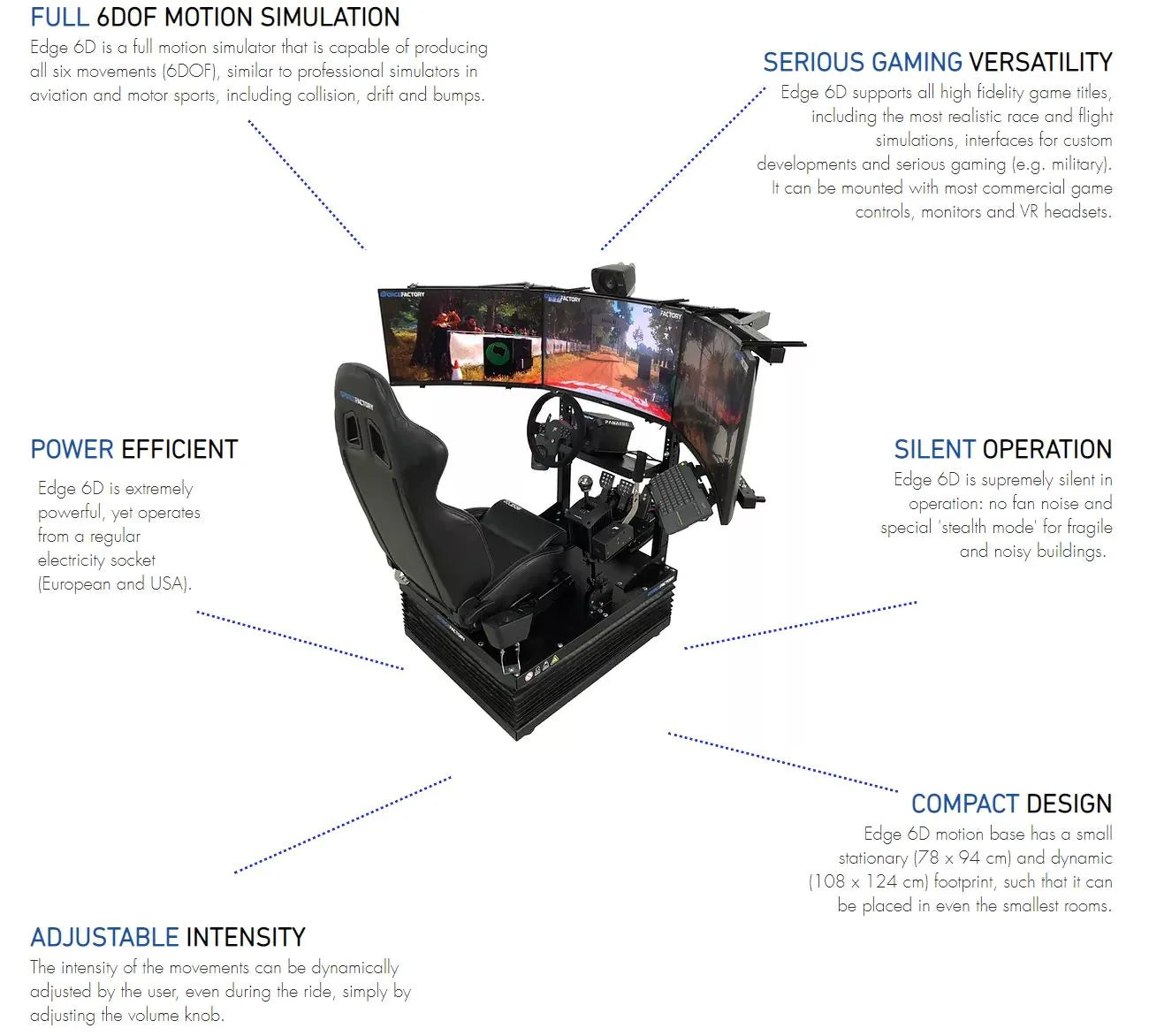

PRODUCT FEATURES

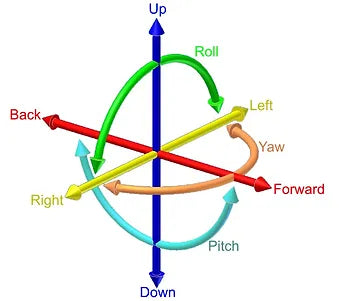

WHAT IS 6DOF?

6DOF is short for Six Degrees of Freedom.

Six degrees of freedom (6DOF) refers to the ability to change position in three lateral directions and three rotational directions:

Tx - forward/back (surge)

Ty - left/right (sway)

Tz - up/down (heave)

Rx - tilt sideways (roll)

Ry - tilt forward/backward (pitch)

Rz - turn left/right (yaw)

TECHNICAL SPECIFICATIONS

Architecture

Control frequency

Control interface

Dimensions (platform)

Unit weight (platform)

Max. payload (incl. user)

Linear performance (ISO)

Radial performance (ISO)

Power requirements

Power consumption (average)

6DOF stewart platform

200 Hz

UDP 100 Mbit bi-directional

0.78 x 0.94 x 0.34 m (incl. floor stand)

100 kg (35 kg + 65 kg)

250 kg (NEW)

Tx: +- 0.13 m, +- 0.5 m/s, 6 m/s2 (0.6 G)

Ty: +- 0.11 m, +- 0.5 m/s, 6 m/s2 (0.6 G)

Tz: +- 0.08 m, +- 0.3 m/s, 5 m/s2 (0.5 G)

Rx: +- 15 deg, +- 35 deg/s, 600 deg/s2

Ry: -17 / +14 deg, +- 35 deg/s, 600 deg/s2

Rz: +- 15 deg, +- 40 deg/s, 600 deg/s2

230 V - 3.5 A / 115 V - 7 A (800 W)

200 W
